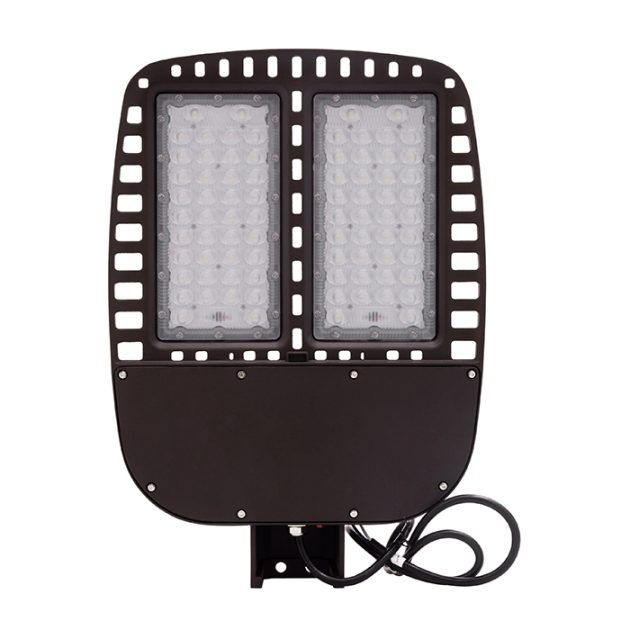

LED AREA LIGHT

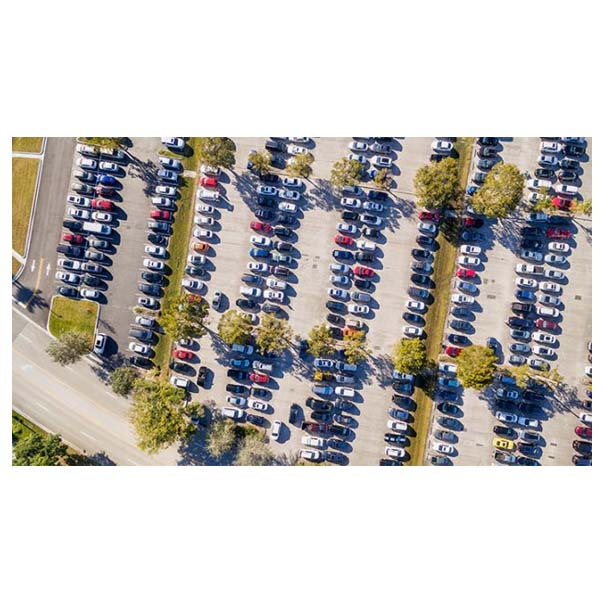

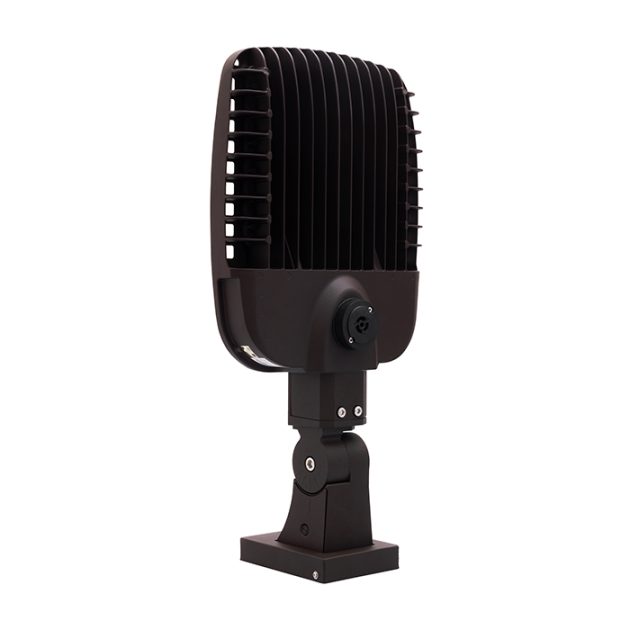

The Aquila LED Area Light delivers high efficiency with maximum energy savings and advanced controls to suit a variety of applications. Its robust, low-profile housing is comprised of die-cast aluminum and has a modern, single piece design that will blend into most environments. Exceptional performance is enhanced by the precision die-cast thermodynamic fin cooling system, uniquely developed by NICOR. Quick to install, the Aquila is a versatile fixture with easily interchangeable precision lenses in Type II through Type V distributions. The Aquila is available in lumen packages from 13,000 to 40,000 lumens. Ideal for use in parking lots, roadways, recreational or public venues, walkways, auto dealerships, campuses, and other commercial environments. UL Listed for wet locations.



Category: Tags:

Specifications

  • Individual optics are precisely designed to shape the distribution maximizing
    efficiency and spacing criteria
  • High impact polycarbonate lenses deliver four IES type distributions
  • Type III distribution is standard
  • Type II, IV and V distributions are optional
  • Zero uplight
  • Utilizes advanced LED technology and available in 3000K, 4000K and 5000K
  • Standard 80 CRI to improve safety and color definition in public places
  • Input voltage of 120-277VAC or 347-480VAC
  • Industry leading surge protection (10kA on 120-277VAC and 20kA on 347-480VAC )
    provides single phase protection for line/neutral, line/ground and neutral/ground in
    accordance with IEEE C62.41 2002 C High category
  • Operating temperature rating of -40°F to 104°F (-40°C to 40°C)
  • Available in 60W, 100W, 150W, 200W and 300W products
  • TM-21 Reported L70(9k) life >54,000 hours

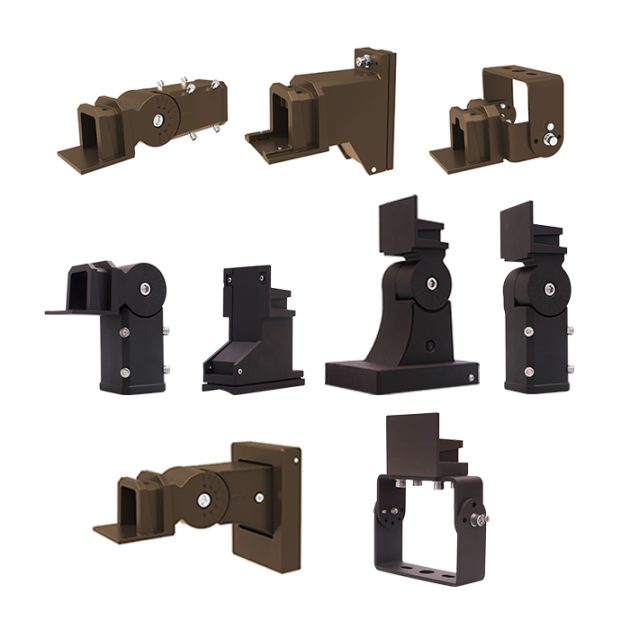

  • Mounting Accessories sold separately

Downloads

– Outdoor Brochure

– Spec Sheet
– Accessory Spec Sheet
– Installation Instructions

– ies Files Type III

OAL2 - 100W Type III

3000K
Warm White		4000K
Neutral		5000K
Cool

12,333
Lumens

12,657
Lumens

12,968
Lumens

98
Input Watts

98
Input Watts

98
Input Watts

126.4
lm/W

129.7
lm/W

132.9
lm/W

83
CRI

83
CRI

83
CRI

Part Numbers:

 3000K: OAL2100MV308BZ3
 4000K: OAL2100MV408BZ3
 5000K: OAL2100MV508BZ3
OAL2 - 100W Type III



3000K
Warm White		4000K
Neutral		5000K
Cool

12,333
Lumens

12,657
Lumens

12,968
Lumens

98
Input Watts

98
Input Watts

98
Input Watts

126.4
lm/W

129.7
lm/W

132.9
lm/W

83
CRI

83
CRI

83
CRI

Part Numbers:

 3000K: OAL2100MV308BZ3
 4000K: OAL2100MV408BZ3
 5000K: OAL2100MV508BZ3
