SELECTABLE LED LOW BAY/HIGH BAY

The HBC5 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with Selectable wattage, Selectable color temperature, and wireless control technology. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC5 produces an impressive light output exceeding 130 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC5 is available in universal (120-277VAC) and high-voltage (277-480VAC) models with 0-10V dimming and a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add a 40W emergency backup for added safety and security. The HBC5 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.



Category: Tags:

Specifications

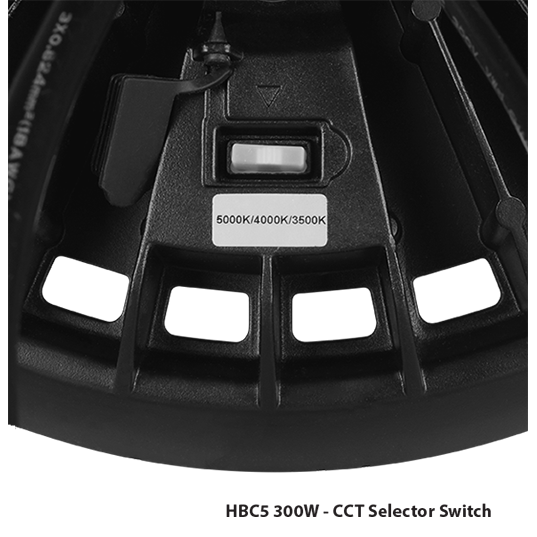

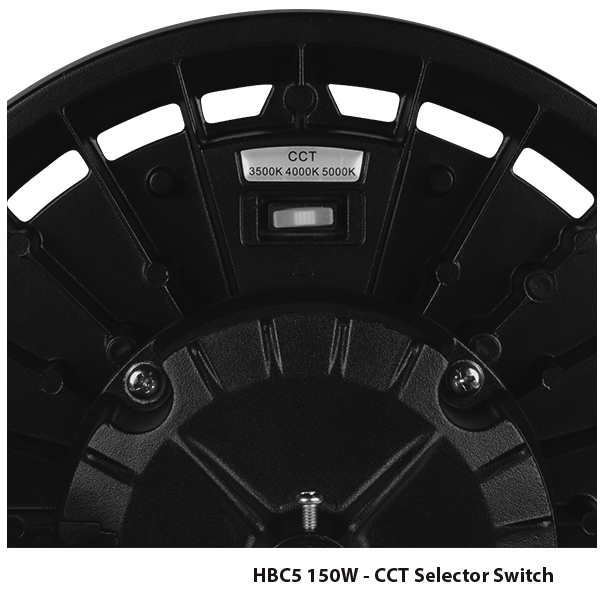

  • Selectable color temperatures settings:
    • 3500K, 4000K, and 5000K

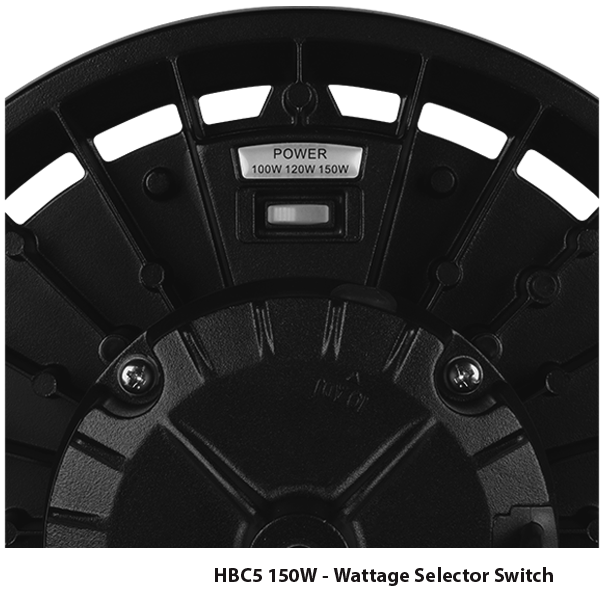

  • Available in three Selectable Wattage options:
    • 150W (100W/120W/150W)
    • 240W (200W/220W/240W)
    • 300W (240W/270W/300W)
  • Available in Universal and High-Voltage models:
    • 120-277VAC (Universal Voltage)
    • 277-480VAC (High-Voltage)
  • 90° Polycarbonate reflectors available
  • 90° Aluminum reflectors available
  • Glare shields and Wireguards available
  • >80 CRI for improved safety and color rendering
  • Power factor: >0.9
  • THD < 20%
  • 6kV/3kA Luminaire surge protection level
  • 0-10 dimming with 12V accessory output
  • Operating temperature range: -40° to 122°F (-40° to 50°C), -22° to 122°F (-30° to 50°C) with one of the HBC5 sensors installed.

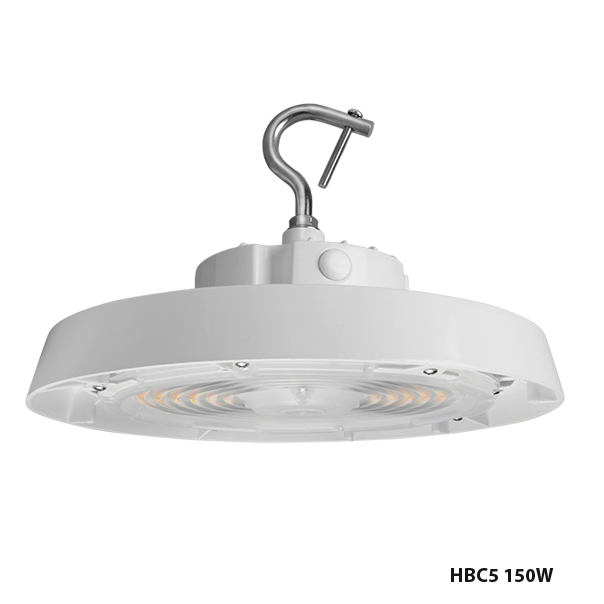

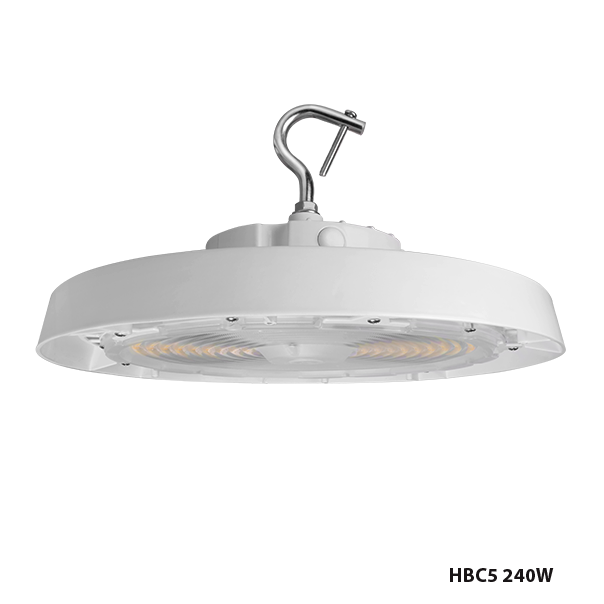

  • Available in Black or White
  • NLC (Network Lighting Controls)
    • Bluetooth Low Energy (BLE) mesh network providing Luminaire Level Lighting Control

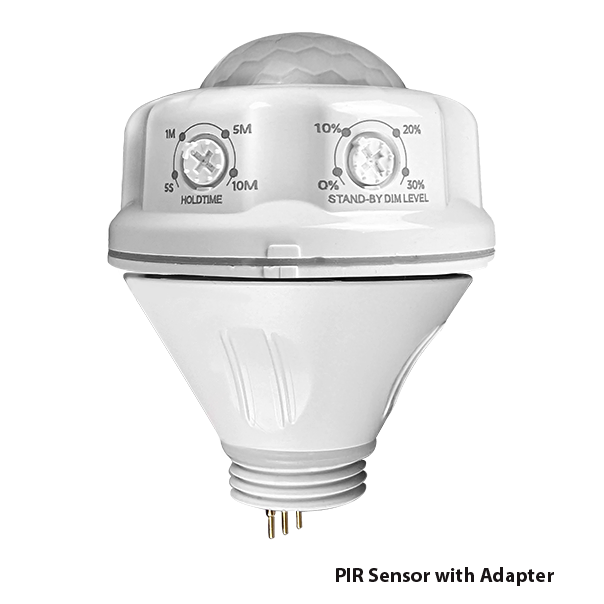

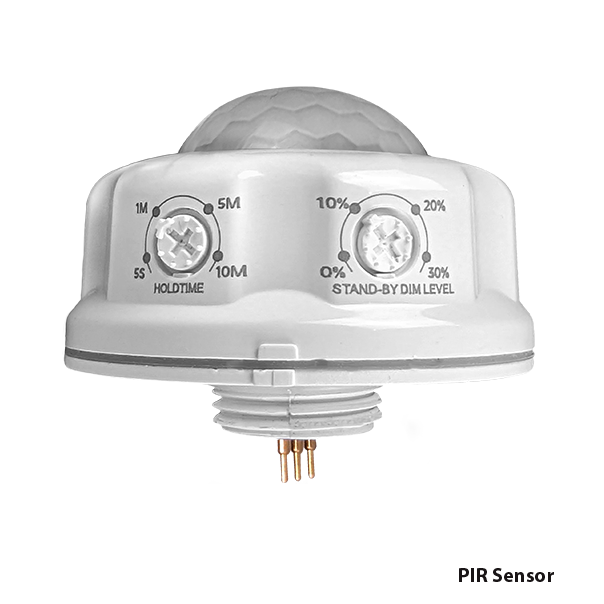

    • Field installable BLE PIR/Daylight sensor available. Requires HBCSOCKETADAPT1
    • Configurable with the NICOR NLC app available on iOS and Android devices
    • Provides full dimming control, scheduling, LLLC with occupancy and daylight harvesting functions

Downloads

– Sell Sheet
– Features and Benefits
– Version Comparison
– Competitor Comparison

– HBC5 Spec Sheet
– HBC5 Installation Instructions
– HBC5 Lens Installation Instructions

– HBC5 Sensor Spec Sheet

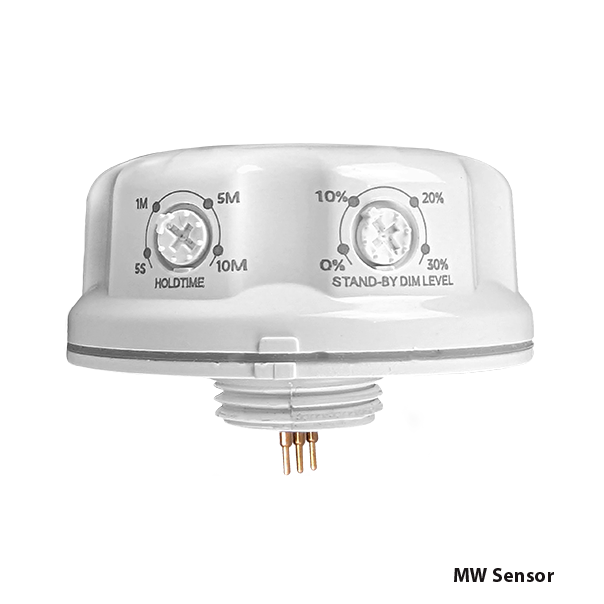

– MW Sensor Installation Instructions

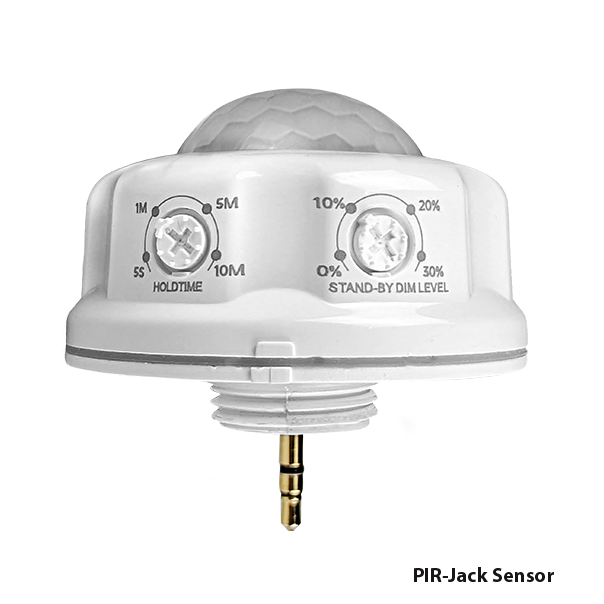

– PIR Sensor Installation Instructions

– ies Files 150W
– ies Files 240W

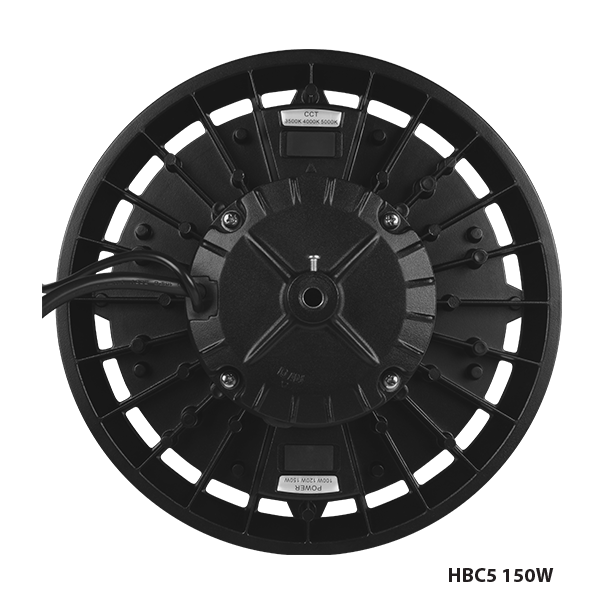

HBC5 150W
3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool

13,396/16,075/20,094
Lumens

14,472/17,366/21,708
Lumens

13,561/16,274/20,342
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

134
lm/W

145
lm/W

136
lm/W

82
CRI

82
CRI

82
CRI

Part Number:
All: HBC5150S

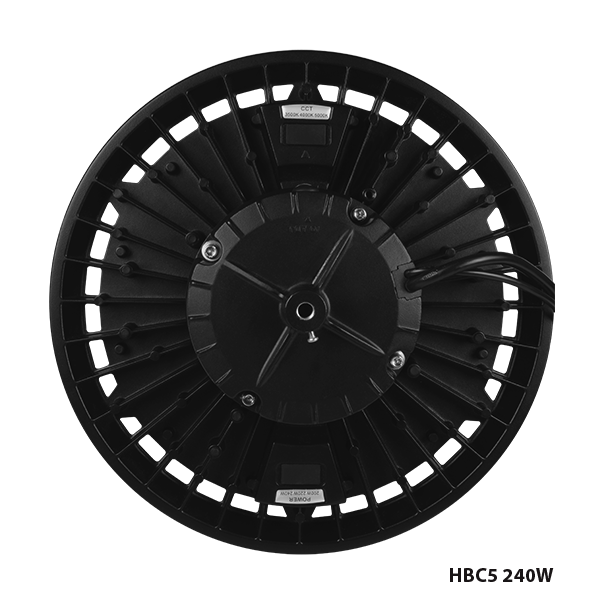

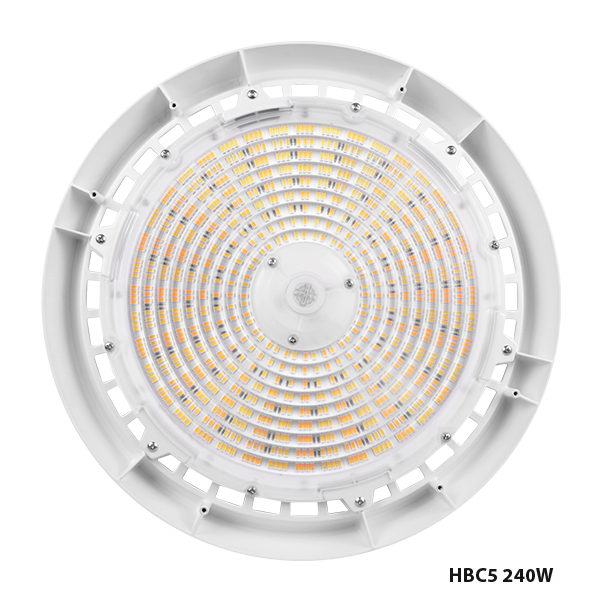

HBC5 240W
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

27,183/29,901/32,619
Lumens

29,140/32,054/34,968
Lumens

27,545/30,300/33,054
Lumens

200/220/240
Input Watts

200/220/240
Input Watts

200/220/240
Input Watts

136
lm/W

146
lm/W

138
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 All:HBC5240S

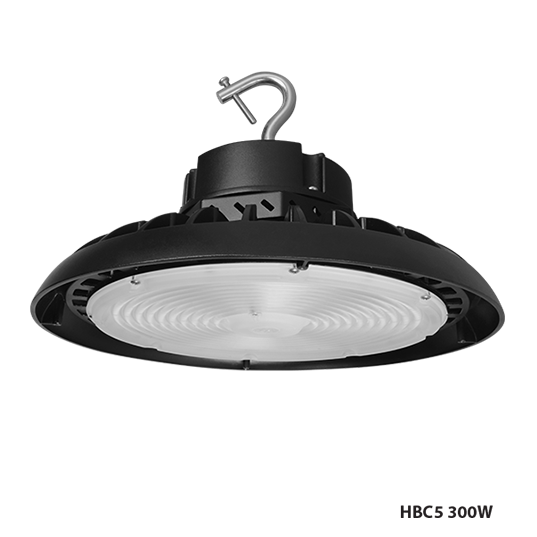

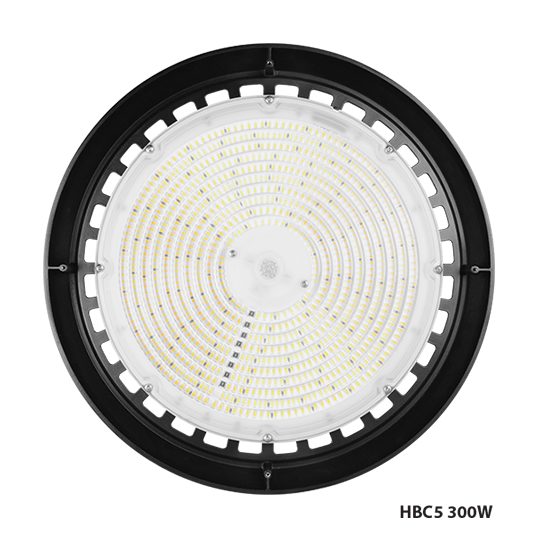

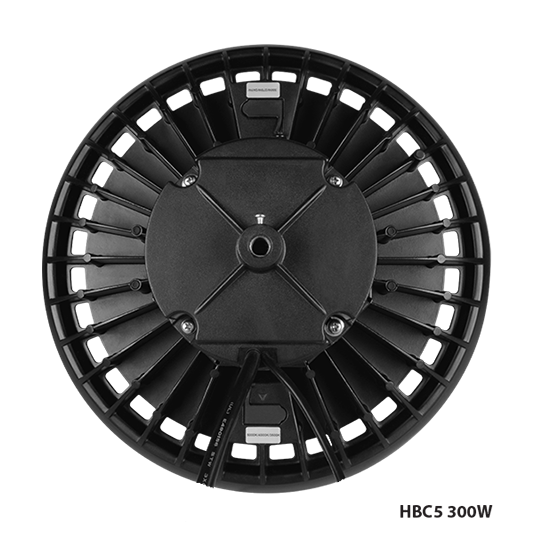

HBC5 300W
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

33,606/37,806/42,007
Lumens

36,008/40,509/45,010
Lumens

34,966/39,337/43,708
Lumens

240/270/300
Input Watts

240/270/300
Input Watts

240/270/300
Input Watts

140
lm/W

150
lm/W

146
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 All:HBC5240S
HBC5 150W
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

13,396/16,075/20,094
Lumens

 14,472/17,366/21,708
Lumens

 13,561/16,274/20,342
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

134
lm/W

145
lm/W

136
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 All:HBC5150SUS8



HBC5 240W
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

27,183/29,901/32,619
Lumens

 29,140/32,054/34,968
Lumens

 27,545/30,300/33,054
Lumens

200/220/240
Input Watts

200/220/240
Input Watts

200/220/240
Input Watts

136
lm/W

146
lm/W

138
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 All:HBC5240SUS8



HBC5 300W
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

33,606/37,806/42,007
Lumens

 36,008/40,509/45,010
Lumens

 34,966/39,337/43,708
Lumens

240/270/300
Input Watts

240/270/300
Input Watts

240/270/300
Input Watts

140
lm/W

150
lm/W

146
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 All:HBC5300S
