SELECTABLE LED WALLPACK

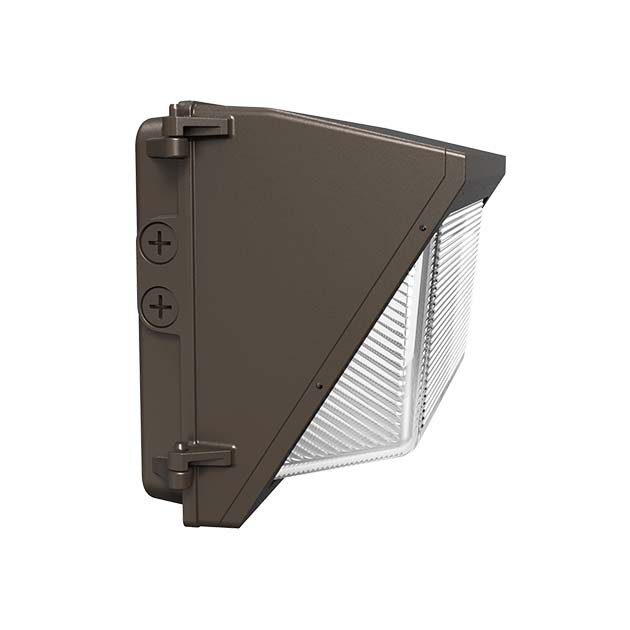

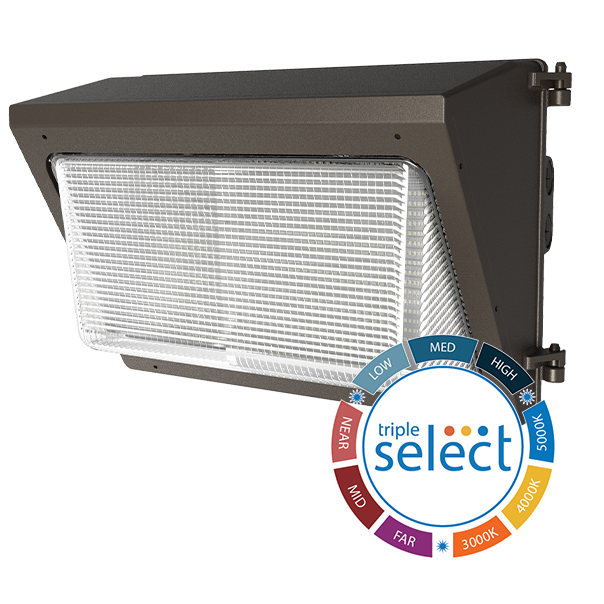

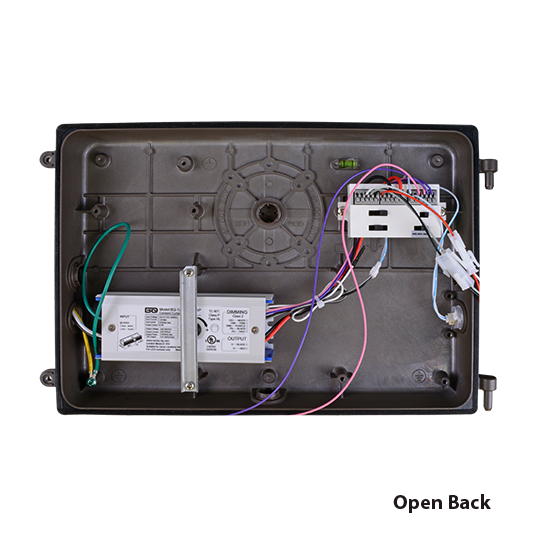

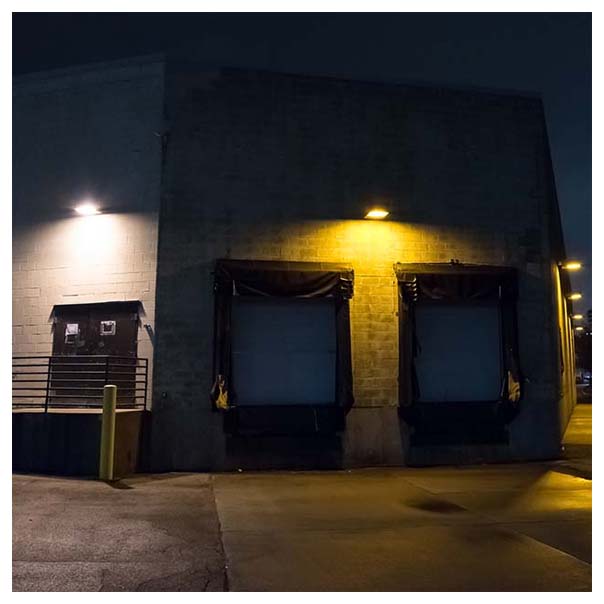

The OWG5 LED Wall Pack is an enhanced version of the traditional wall pack design, featuring selectable CCT (correlated color temperature), an optional adjustable lumens (wattage) setting, and now with adjustable beam throw. With an impressive output of up to 145 lumens per watt, the OWG5 provides powerful and evenly distributed light. Its installation is hassle-free, allowing attachment to walls or direct mounting on a J-Box using its separable hinged backplate. An internal switch board enables users to customize the CCT within the range of 3000/4000/5000K, adjust the wattage output to high, medium, or low settings, and customize the beam angle to have a near, mid, or far throw. An integral photocell comes standard and can be enabled as needed. Equipped with four knockouts for through-wiring or sensor additions, the OWG5 is an excellent choice for security and perimeter lighting various commercial locations and multi-family complexes.



Category: Tags:

Specifications

  • Tempered clear prismatic glass to maximize lumen output
  • LED array mounting reduces glare for optimum distribution
  • Internal switch to adjust beam throw (near, mid, far)
  • Selectable models use a dual emitter array that enables CCT selection of 3000K/4000K/5000K
  • >80 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC
  • 0-10V dimming
  • Optional Selectable Wattage (60/50/40W, 80/65/50W, 120/100/80W)
  • Operating temperature rating of -40F° to 113°F (-40°C to 45°C)
  • Surge protection 6kV provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C
  • Optional internal emergency back-up

Downloads

– Sell Sheet

– Spec Sheet
– Installation Instructions

– ies Files

60 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

6681/7966/9502
Lumens

6757/8185/9905
Lumens

6894/8255/9956
Lumens

40/50/60
Input Watts

40/50/60
Input Watts

40/50/60
Input Watts

~160
lm/W

~168
lm/W

~166
lm/W

80
CRI

80
CRI

80
CRI

Part Number:

 Select:OWG5060SUS8
80 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

7769/9648/11,869
Lumens

7970/10,035/12,349
Lumens

8065/10,090/12,411
Lumens

50/65/80
Input Watts

50/65/80
Input Watts

50/65/80
Input Watts

~150
lm/W

~159
lm/W

~157
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWG5080SUS8
120 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

11,693/13,986/17,424
Lumens

 12,005/14,458/17,785
Lumens

 12,164/14,581/17,920
Lumens

80/100/120
Input Watts

80/100/120
Input Watts

80/100/120
Input Watts

~151
lm/W

~159
lm/W

~156
lm/W

80
CRI

80
CRI

80
CRI

Part Number:

 Select:OWG5120SUS8
60 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

6681/7966/9502
Lumens

 6757/8185/9905
Lumens

 6894/8255/9956
Lumens

40/50/60
Input Watts

40/50/60
Input Watts

40/50/60
Input Watts

~160
lm/W

~168
lm/W

~166
lm/W

80
CRI

80
CRI

80
CRI

Part Number:

 Select:OWG5060SUS8



80 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

7769/9648/11,869
Lumens

 7970/10,035/12,349
Lumens

 8065/10,090/12,411
Lumens

50/65/80
Input Watts

50/65/80
Input Watts

50/65/80
Input Watts

~150
lm/W

~159
lm/W

~157
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OWG5080SUS8



120 Watt - Mid Beam Throw
3000K
Warm White		4000K
Neutral		5000K
Cool

11,693/13,986/17,424
Lumens

 12,005/14,458/17,785
Lumens

 12,164/14,581/17,920
Lumens

80/100/120v
Input Watts

80/100/120
Input Watts

80/100/120
Input Watts

~151
lm/W

~159
lm/W

~156
lm/W

80
CRI

80
CRI

80
CRI

Part Number:

 Select:OWG5120SUS8
